On-Off Globe Valve
Globe Control Valve







Valve Size 15A(1/2") ~ 350A(14")
Actuator Model AP220 ~ AP470
Actuator Type Pneumatic Multi Spring Diaphragm / Cylinder - Linear Action (with Dry Air)
Operating Pressure 3 ~ 5kg/㎠
Fluid Temperature -100℃ ~ 560℃
Rating ANSI 150#(JIS 10K)
Body Body(A216 WCB, A351 CF8, 8M) / Trim(A182 F304, 316) / Packing(Graphite, viton)
Accessory Solenoid Valve, Air filter Regulator, E/P Positioner

(mm)
Size L H HA HB D A A1 Weight
mm Inch
15A 1/2" 184 377 276 100 220 250 140 13
20A 3/4" 184 377 276 100 220 250 140 13
25A 1" 184 382 276 106 220 250 140 16
32A 1-1/4" 222 431 320 111 270 260 140 22
40A 1-1/2" 222 431 320 111 270 260 140 22
50A 2" 254 444 320 111 270 260 140 28
65A 2-1/2" 276 529 394 155 270 260 190 48
80A 3" 298 561 394 165 350 270 190 61
100A 4" 352 581 394 185 350 270 190 176
125A 5" 403 805 525 280 350 270 190 155
150A 6" 451 815 525 290 470 300 250 175
200A 8" 543 935 585 350 470 300 250 280
250A 10" 673 935 585 430 470 300 250 350

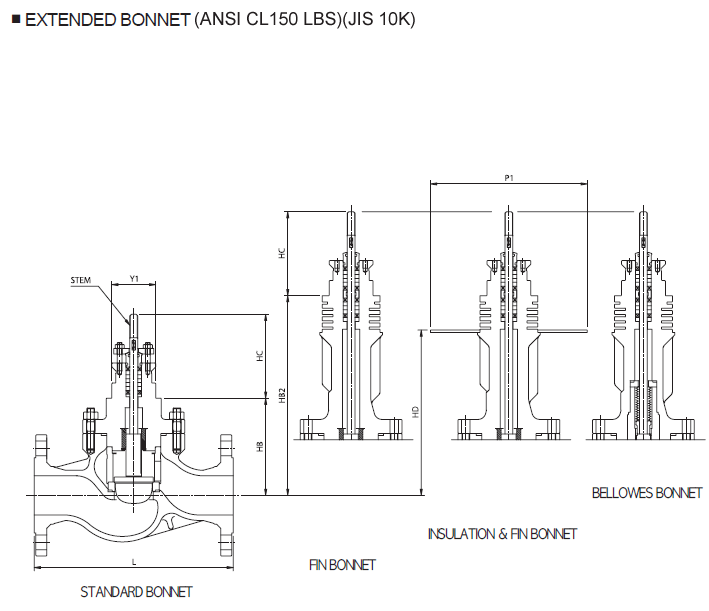

(mm)
Size Stroke L HB HB2 Y
0-0.1		 HC HD P1 Stem
mm Inch
15A 1/2" 20 184 100 216 50 105 175 150 M10X1.5P
20A 3/4" 20 184 100 216 50 105 175 150 M10X1.5P
25A 1" 20 184 106 223 50 105 180 150 M10X1.5P
32A 1-1/4" 25 222 111 237 50 105 195 170 M10X1.5P
40A 1-1/2" 25 222 111 237

50

 105 195 170 M10X1.5P
50A 2" 25 254 111 255 50 105 215 200 M10X1.5P
65A 2-1/2" 30 276 155 270 65.5 125 227 220 M14X1.5P
80A 3" 40 298 165 351 65.5 125 310 220 M14X1.5P
100A 4" 40 352 185 403 65.5 125 365 240 M14X1.5P
125A 5" 50 403 280 470 82 145 440 300 M16X1.5P
150A 6" 50 451 290 480 82 140 450 300 M16X1.5P
200A 8" 75 543 350 580 82 138 510 400 M18X1.5P
250A 10" 75 673 430 430 82 145 660 480 M18X1.5P
