| Valve Size |
15A(1/2") ~ 400A(16") |
| Actuator Model |
AP220 ~ AP560 |
| Actuator Type |
Pneumatic Multi Spring Diaphragm / Cylinder - Linear Action (with Dry Air) |
| Operating Pressure |
3 ~ 5kg/㎠ |
| Fluid Temperature |
-100℃ ~ 560℃ |
| Rating |
ANSI 150#(JIS 10K) |
| Body |
Body(A216 WCB, A351 CF8, 8M) / Trim(A182 F304, 316) / Packing(Graphite, viton) |
| Accessory |
Solenoid Valve, Air filter Regulator, E/P Positioner |
|
| |
 |
 |
(mm) |
|
| SIZE |
STROKE |
L |
H |
HA |
HB |
D |
A |
A1 |
Weight |
| mm |
Inch |
| 15A |
1/2" |
20 |
184 |
390 |
280 |
110 |
220 |
250 |
140 |
13 |
| 20A |
3/4" |
20 |
184 |
13 |
| 25A |
1" |
20 |
184 |
16 |
| 32A |
1-1/4" |
25 |
222 |
435 |
320 |
115 |
270 |
260 |
22 |
| 40A |
1-1/2" |
25 |
222 |
22 |
| 50A |
2" |
25 |
254 |
445 |
320 |
125 |
28 |
| 65A |
2-1/2" |
30 |
276 |
535 |
395 |
140 |
350 |
270 |
160 |
48 |
| 80A |
3" |
40 |
298 |
565 |
395 |
170 |
61 |
| 100A |
4" |
40 |
352 |
585 |
395 |
190 |
69 |
| 125A |
5" |
50 |
403 |
780 |
500 |
280 |
470 |
300 |
250 |
155 |
| 150A |
6" |
50 |
451 |
785 |
500 |
285 |
175 |
| 200A |
8" |
75 |
543 |
855 |
500 |
355 |
280 |
| 250A |
10" |
75 |
673 |
1118 |
693 |
420 |
560 |
|
|
350 |
| 300A |
12" |
100 |
737 |
1119 |
693 |
497 |
- |
| 350A |
14" |
100 |
889 |
1273 |
893 |
580 |
CYLINDER
400 |
|
|
- |
| 400A |
16" |
130 |
1016 |
1698 |
1045 |
653 |
- |
|
| |
 |
| |
|

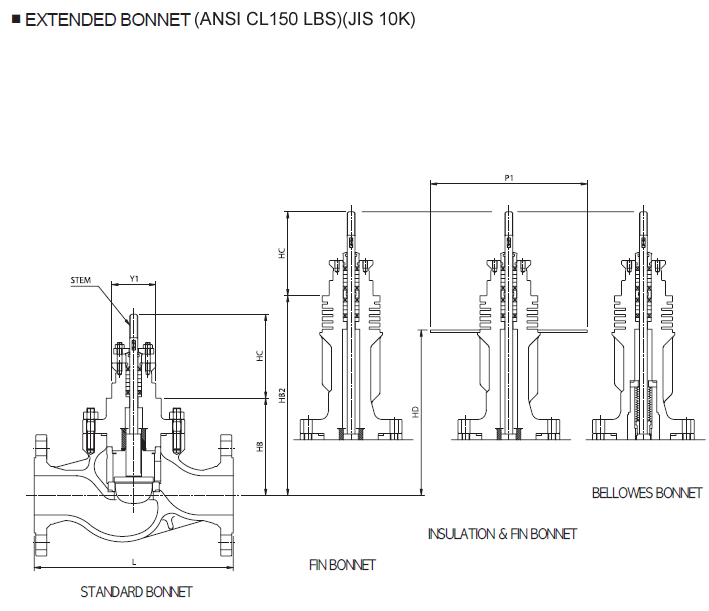

(mm) |
|
| Size |
Stroke |
L |
HB |
HB2 |
Y
0-0.1 |
HC |
HD |
P1 |
Stem |
| mm |
Inch |
| 15A |
1/2" |
20 |
184 |
100 |
216 |
50 |
105 |
175 |
150 |
M10X1.5P |
| 20A |
3/4" |
20 |
184 |
100 |
216 |
50 |
105 |
175 |
150 |
M10X1.5P |
| 25A |
1" |
20 |
184 |
106 |
223 |
50 |
105 |
180 |
150 |
M10X1.5P |
| 32A |
1-1/4" |
25 |
222 |
111 |
237 |
50 |
105 |
195 |
170 |
M10X1.5P |
| 40A |
1-1/2" |
25 |
222 |
111 |
237 |
50 |
105 |
195 |
170 |
M10X1.5P |
| 50A |
2" |
25 |
254 |
111 |
255 |
50 |
105 |
215 |
200 |
M10X1.5P |
| 65A |
2-1/2" |
30 |
276 |
155 |
270 |
65.5 |
125 |
227 |
220 |
M14X1.5P |
| 80A |
3" |
40 |
298 |
165 |
351 |
65.5 |
125 |
310 |
220 |
M14X1.5P |
| 100A |
4" |
40 |
352 |
185 |
403 |
65.5 |
125 |
365 |
240 |
M14X1.5P |
| 150A |
6" |
50 |
451 |
290 |
480 |
82 |
145 |
450 |
300 |
M16X1.5P |
| 200A |
8" |
75 |
543 |
350 |
580 |
82 |
145 |
510 |
400 |
M18X1.5P |
| 250A |
10" |
75 |
673 |
430 |
580 |
82 |
145 |
660 |
480 |
M18X1.5P |
| 300A |
12" |
100 |
737 |
693 |
580 |
100 |
150 |
|
480 |
M24X1.5P |
| 350A |
14" |
100 |
889 |
893 |
830 |
150 |
200 |
|
480 |
M24X1.5P |
| 400A |
16" |
130 |
1016 |
1045 |
830 |
150 |
200 |
|
480 |
M24X1.5P |
|
| |
|
|
